Abnormal handling¶
A runbook for the faults you'll actually hit. Each one: what the memo panel shows, what caused it, and what to do. Every scenario below is reproducible with the simulated MSense device — set the wristband's Fault column in Configuration → "MSense Demo (simulated)".
Watch it headlessly
plasma-ctl watch --fail-on L3 prints every colour change and exits
non-zero the moment anything goes red — the building block for an
unattended rig.

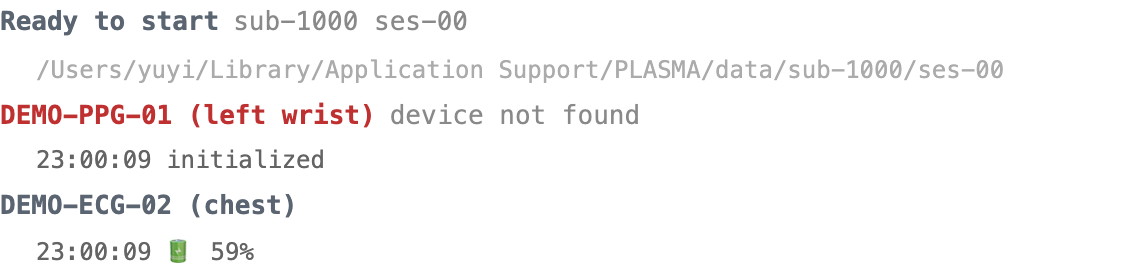

Wristband not found at Initialize¶
| Memo | device row red, device not found |
| Cause | the wristband wasn't advertising / in range / paired when you pressed Initialize |
| Do | check it's on and charged; re-scan under Configuration → "MSense wristbands" (before Initialize — single BLE radio); confirm the address in the table; Initialize again |
| Demo fault | device_not_found |

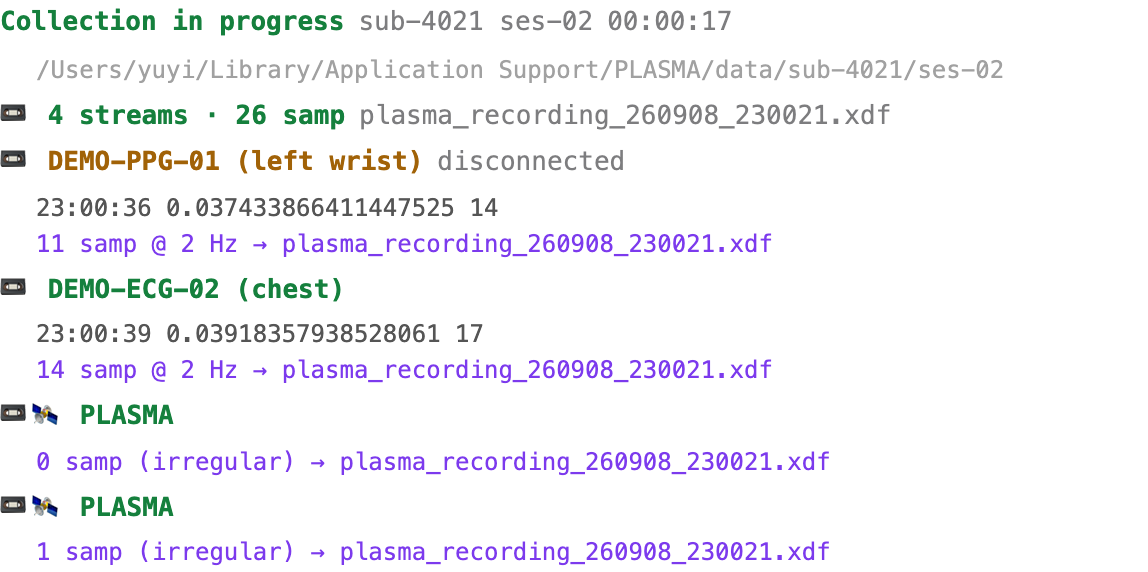

BLE drop mid-session¶

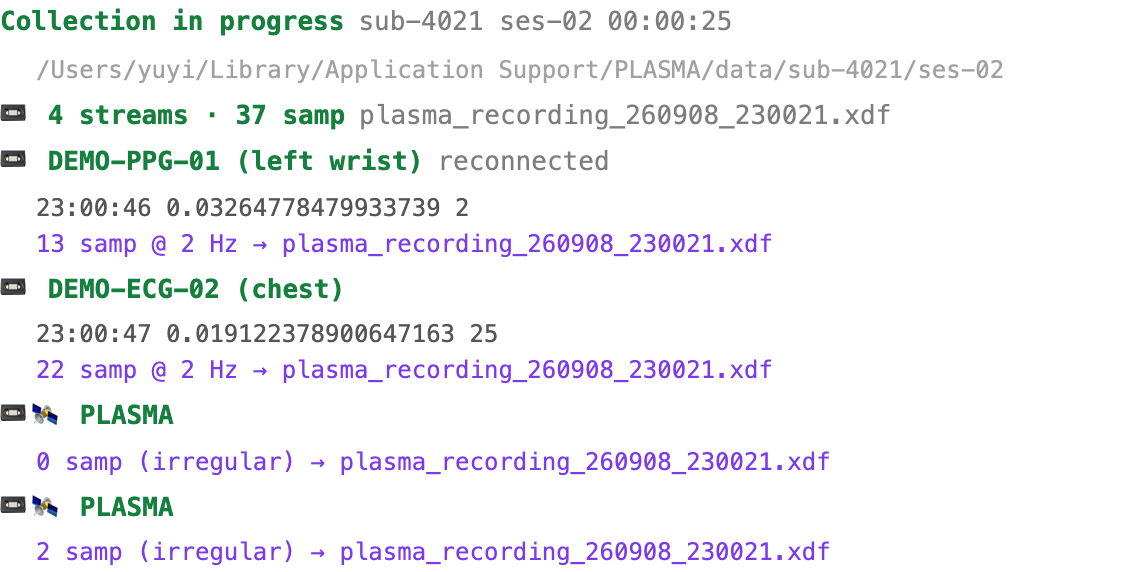

| Memo | row amber, disconnected → then green, reconnected |
| Cause | the link dropped (range, interference, a busy radio) |
| Do | usually nothing — auto-reconnect brings it back within ~10 s and streaming resumes. The gap is in the recording; note it with a 🚩 journal flag. If it keeps dropping, move the base station closer. |
| Demo fault | disconnect_reconnect |
…that doesn't come back¶
| Memo | row red, still disconnected (same message as the amber state — only the colour escalates once the recording's been silent ≈30 s) |
| Cause | the link has stayed down through repeated reconnect attempts; the watchdog is still retrying every ~10 s but hasn't succeeded |
| Do | the wristband is effectively out for now. 🎛️ Control → Advanced → 🔄 Reconnect now to force an attempt; if it won't come back, power-cycle the wristband and re-Initialize (this starts a new session folder). If it does reconnect, the row returns to green (reconnected). |

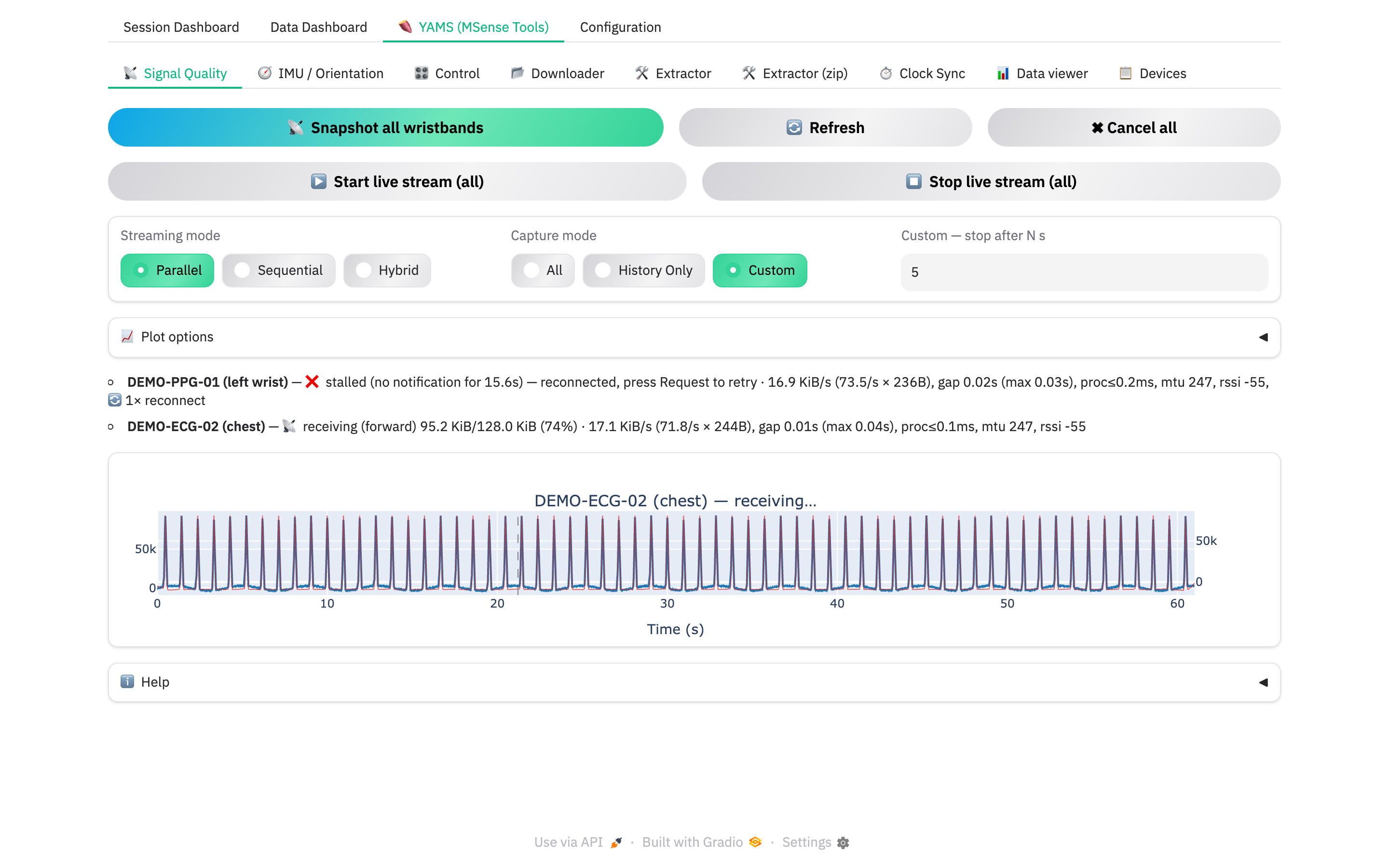

SQC snapshot stalls¶
| Where | YAMS → 📡 Signal Quality status line; the wristband's memo row also goes amber |
| Memo / tab | ❌ stalled (no notification for …s) — reconnected, press Request to retry |
| Cause | the wristband's transmit buffer wedged mid-transfer; the no-progress watchdog stopped and reconnected it |
| Do | press 📡 Snapshot all wristbands again. If it stalls repeatedly, switch Streaming mode to Sequential, or use Capture mode → History Only for a shorter transfer. A stalled snapshot does not affect a running session recording. |
| Demo fault | sqc_error (snapshots), stream_stall (live streams) |

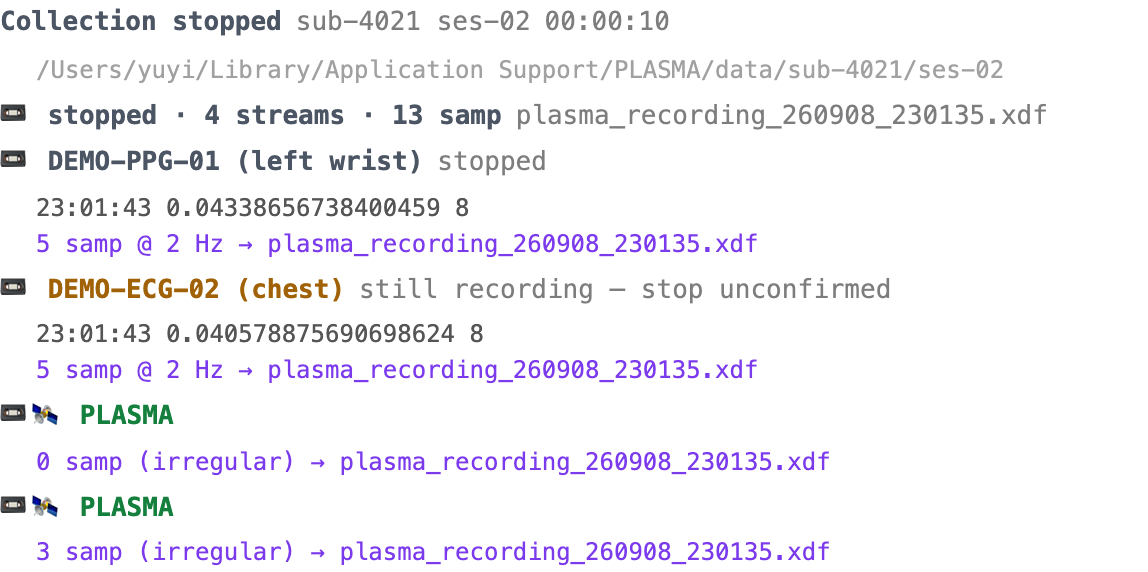

Acquisition stop unconfirmed¶
| Memo | row amber, still recording — stop unconfirmed |

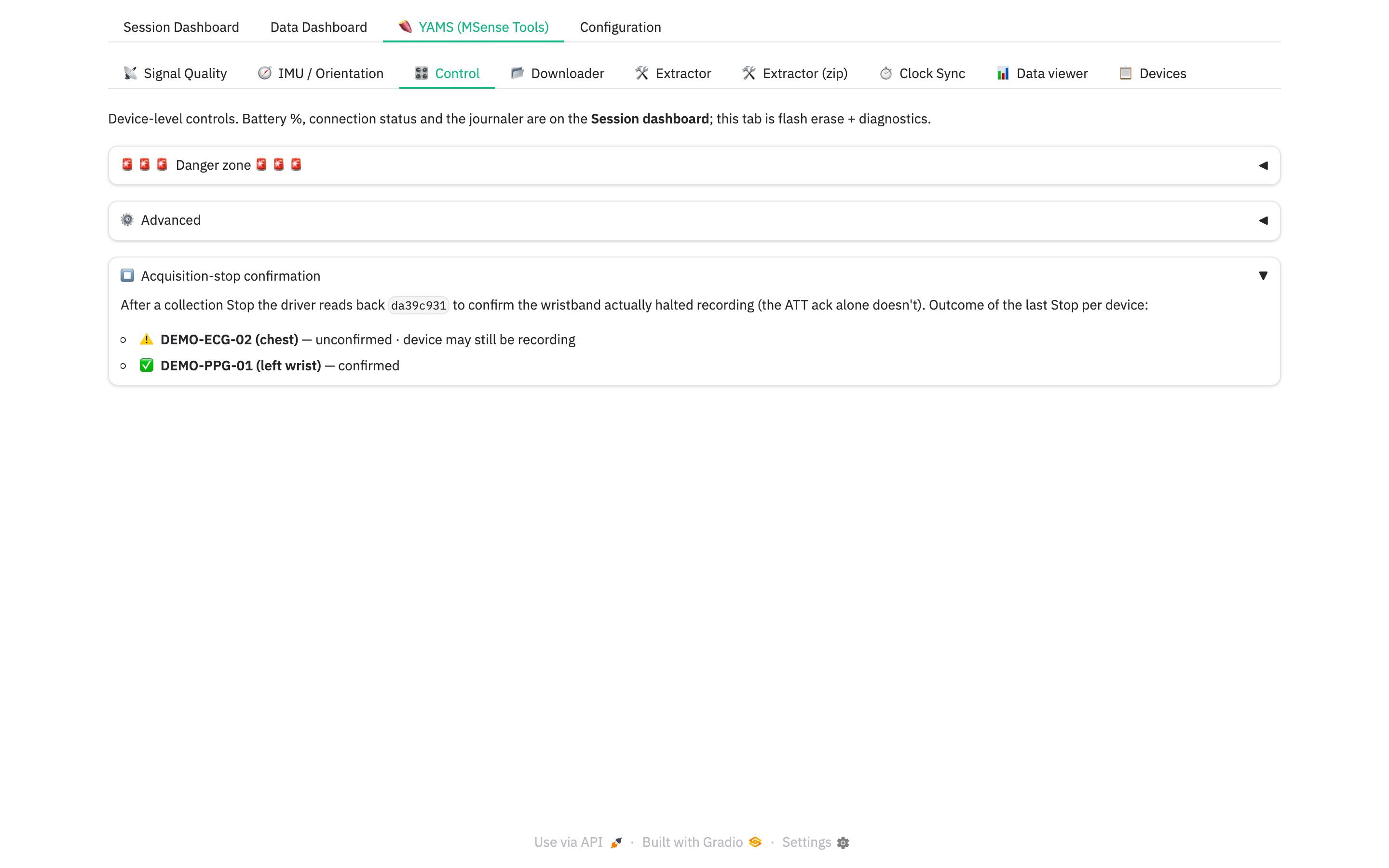

| Where else | YAMS → 🎛️ Control → Acquisition-stop confirmation lists it as unconfirmed · device may still be recording; the journal gets [ACQ] <name> stop UNCONFIRMED |
| Cause | after Stop, PLASMA reads the wristband's acquisition flag back to confirm it actually halted (the Bluetooth ack alone doesn't prove it). It retried once and the flag still read "recording" — likely a firmware issue |
| Do | the session's end boundary is uncertain — the wristband may have kept writing to its own flash past your Stop. Power-cycle the wristband before the next session. When you download its onboard data, expect extra tail samples after your intended stop time. |
| Demo fault | acq_stop_ignored |
An unverifiable result (❓) — older firmware whose flag isn't readable —
is not a failure, just "couldn't check". A bare 🛑 on the memo row means the
same.
Recorder unavailable¶
| Symptom | a toast: "LSL recording unavailable (liblsl/pylsl missing?)"; no .xdf is written; the memo's 📼 row is red |
| Cause | liblsl isn't installed (see Install), or the recording file couldn't be opened |
| Do | Stop is still safe — devices keep their own onboard recordings. Fix liblsl (conda install -c conda-forge liblsl), restart, and re-run. Don't rely on this session's XDF. |
A recorded stream goes silent¶
| Memo | a green device row turns amber then red while its sample count stops climbing |
| Cause | the device driver still thinks it's fine, but the LSL stream it publishes has gone stale (🟡) or lost (🔴) |
| Do | check that device — cable, power, the app it depends on (OBS, Pupil, LiDAR). The memo caught it; the frozen sample count would not have. |
Device fails to start¶
| Memo | row red, start failed — right after you pressed Start |
| Cause | the device connected at Initialize but its start() threw (firmware state, a dependency not ready) |
| Do | Stop, re-Initialize that device, Start again. Check the session log |
(<home>/data/<date>_plasma_session.log) for the exception. |
When to Restart vs Shut down¶
- Restart (Configuration → Power) — after a demo-mode or catalog change, or when the app is in a weird state but you want to keep going. It reloads config from disk and flushes any running recording first.
- Shut down — you're done. Clean exit, recording finalised.
- Closing the browser tab or
Ctrl-Calso finalises a running recording (that wasn't always true — it is as of v2.x).
The paper trail¶
Every fault above is in two places you can read after the fact:
<home>/data/events.jsonl— machine-readable, one JSON line per change, survives restarts.plasma-ctl events --min-level L2ortail -f. Schema: Files & paths.<home>/data/<date>_plasma_session.log— the free-text session log; genuine failures are logged atWARNING/ERROR.
